Stella Sw Has Always Led The Fishing World In Durability, Power And Operability. The New Stella Sw Builds On That Tradition And Brings Unmatched Strength, Reliability And Ease Of Use To Serious Saltwater Anglers. Featuring A Hagane Body, Stella Sw Boasts A Highly Rigid Metal Construction For Improved Impact Resistance And Less Body Flex. At The Heart Of The Reel, State Of The Art Hagane Gears Are Cold-Forged For Lasting Durability And Smoothness. Infinity Drive Technology Offers An Improved Winding Experience, Optimizing Winding Torque By Up To 30%. Silentdrive Further Improves Smoothness By Eliminating Worm Shaft And Drive Gear Play. Stella Sw Incorporates A New Shimano Heatsink Drag To Improves Performance By Transferring Heat Away From The Spool, Reducing The Spool-Surface Temperature By Up To 100 Degrees. X-Protect And X-Shield Ensure Your Investment Is Guarded Against The Harsh Elements Of A Saltwater Environment So You Can Fish With Confidence. The New Stella Sw Is Lighter, More Powerful And More Reliable Than Ever Before.

ClASSIFICATION	Shore & Offshore Fising Reel
COMPATIBLE	Fresh & Saltwater Fishing
BEARINGS	13+1
GEAR RATIO	5.7
LINE CAPACITY/BRAID LB/YDS	30/290; 50/195; 65/140
LINE CAPACITY/BRAID PE# (PE# No/M)	2/440; 3/300 4/210
MONO CAPACITY LB/YDS	12/265; 16/170; 20/120
LINE CAPACITY (MM/M)	0.33/240; 0.37/190; 0.405/160
SPARE SPOOL	Not Available
REEL SPOOL MATERIAL	Cold Forged Aluminium (Ti Lip)
BODY MATERIAL
MAX DRAG/LB	29
MAX DRAG/KG	13
LINE RETRIEVE/INCHES	41
LINE RETRIEVE/CM	104
REEL HAND POSITION	Interchangeable Right/Lift
HANDLE KNOB SPECIFICATIONS	Eva Round Knob With Screw In Forged;Aluminium Handle (Single)
REEL COLOR	Black/Silver/Gold
REEL WEIGHT/oz	15
REEL WEIGHT/G	425

Aero Wrap Il: This Two-Speed Oscillation System Layers The Line Onto The Spool In A Precise Crisscross Pattern That Reduces Line-To-Line Friction For Longer Casts. Reels With Aero Wrap Il Technology Utilize A Patented Worm Gear Design To Move The Spool Upward Quickly And Downward Slowly To Wind The Line In A Precise Pattern, Reducing Friction And Giving Anglers Smoother And Longer Casting Ability.
Ar-C Spool: Shimano Arc Spool Is A Patented Spool Design With An Angled Spool Lip. This Design Enables The Line To Leave The Spool With Less Friction And In Smaller Coils Resulting In Longer More Accurate Casts. Arc Spools Are Proven To Reduce Backlash And Wind Knots When Using Braid , Cross Carbon Drag: The Cross Carbon Drag Material Provides A Wider Range Of Drag Settings Compared To Traditional Drag Materials. The Cross Carbon Drag Provides The Smoothest Shimano Drag Performance Ever While Providing Anglers With Increased Durability.
E.I Shimano'S Proprietary Surface Treatment Of The Spool And Body Allow Corrosion Resistance More Than Double The Conventional Surface Treatment.

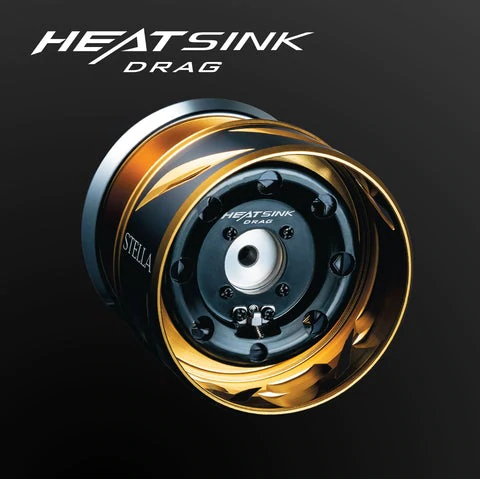

Heatsink Drag: A Revolutionary Structure Located At The Bottom Of The Spool, Achieving Overwhelming Drag Performance And Improved Durability. The Heat Sink Generated By The Drag Section Dissipates The Heat Generated Outside The Spool By About 50% To Reduce The Drag Force Drop Due To Heat. In Addition, The "Heat Insulation Sheet" Which Shuts Off The Heat Flowing To The Line On The Spool, Reducing Spool Line Temperature By 30%.
Hagane Gear: With Amazing Strength And Durability, The Hagane Gear Is At The Very Heart Of The Reel. Shimano, Through The Application Of State-Of-The-Art Technologies, Gives You The Long-Lasting Smoothness And Pleasure That You Feel When You First Use A Reel, Over And Over Again. No Cutting Work Is Applied To The Teeth Of The Drive Gear. Instead The Entire Surface Is Calculated In Minute Detail By Special 3D Design And Then Formed By Shimano'S Cold Forging Technology. The Result Is Assured Resilience. It's The Fruit Of Shimano'S Inexhaustible Pursuit For Durability; The Strength And Power Of Forged Metal Continues To Represent The Fundamental Concept Of Shimano Reels.

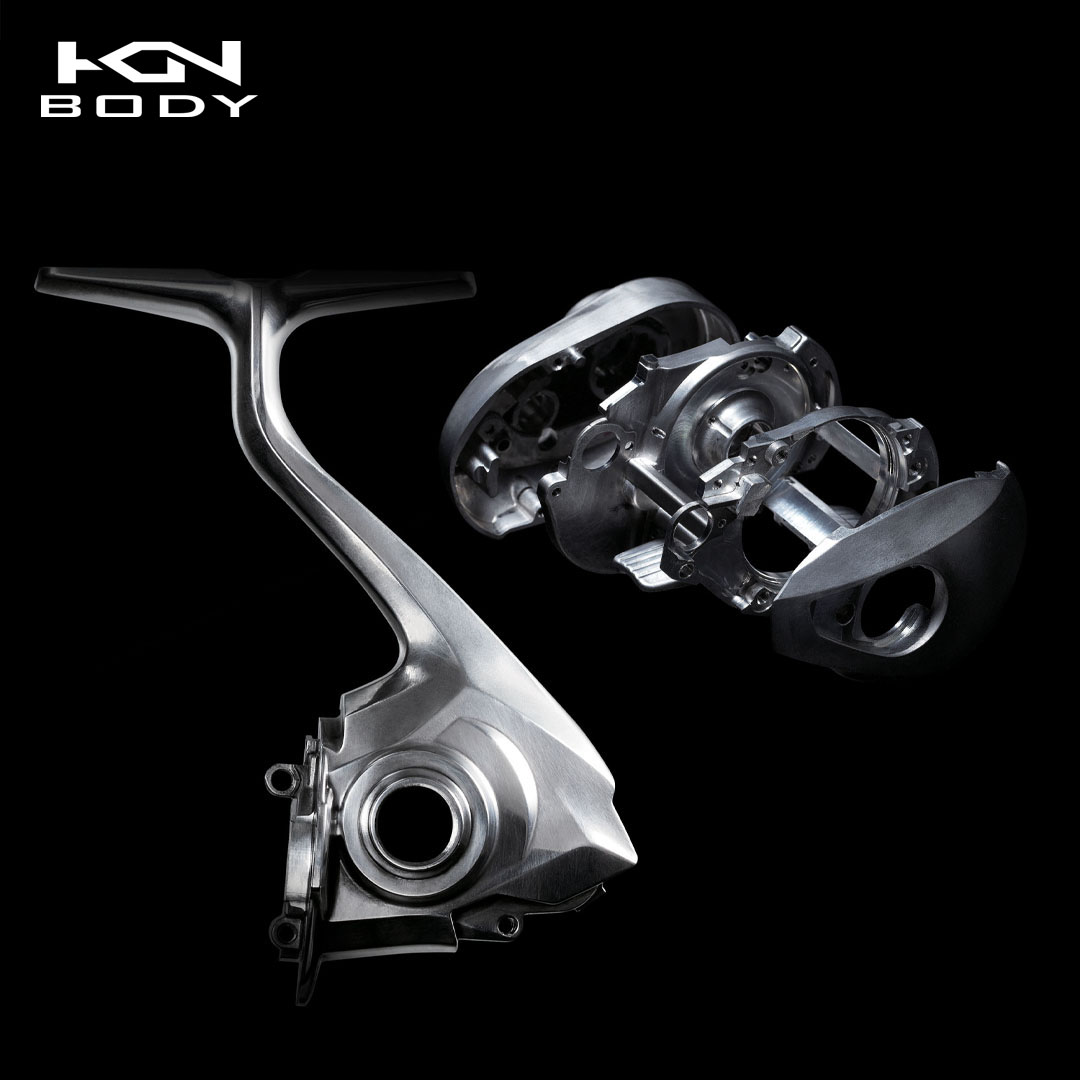

Hagane Body: The Hagane Body Is A Metal Reel Body With High Rigidity. The Body Rigidity And Impact Resistance Virtually Eliminates Body Flexing. The Result Transforms The Angler's Actions Directly Into Cranking Power. It's Efficiency Through Strength.

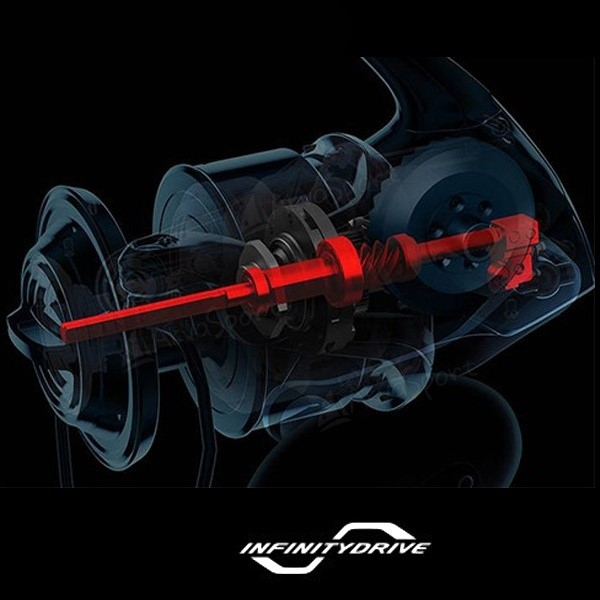

Infinity Drive: The Infinity Drive Structure Is A More Advanced Version Of The Conventional X-Ship Structure That Created Exceptionally Light Winding. The Main Shaft, Which Had Previously Been Supported By The Pinion Gear, Is Now Supported By A New And Unique Low-Friction Bushing That Significantly Decreases Frictional Resistance. In Addition, The Main Shaft Has Undergone A Proprietary Surface Treatment And Special Processing To Drastically Reduce Rotational Torque, Constructing A Reel That Can Actively Wind Even Under Heavy Loads.
Ipx8 Water-Resistant Body: Ipx8 Water-Resistant Rating One Piece Bail: The One-piece Bail Wire Has No Gap For Line To Snag On During Normal Operation, Made Of Stainless Steel, It Reduces Friction And Allows The Line To Get Onto The Line Roller Quicker.
Propulsion Line Management System: The Most Obvious Component Of The Propulsion Line Management System Is The New Propulsion Spool Lip Design.Through Tens

Rigid Support Drag: By Strengthening The Spool Support Of The Main Shaft, The Play And Fluctuation Of The Spool During Drag Operation Are Suppressed, Allowing Smooth Drag Delivery Even Under High Load.

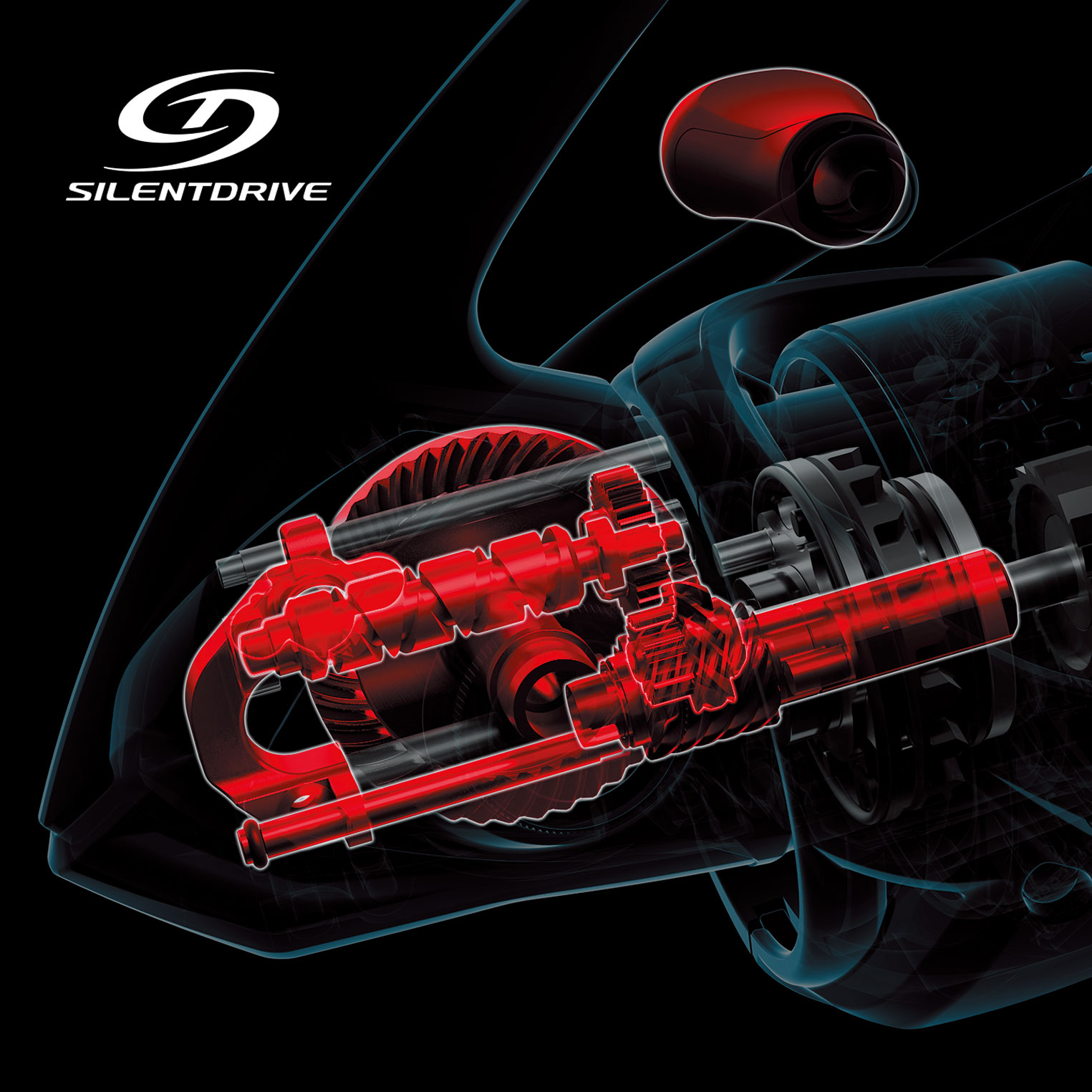

Silent Drive: Intricate Parts Of The Drive Train, Including The Drive Gear, Worm shaft, Worm shaft Pin And Worm shaft Gear, Every Piece Has Been Carefully Reviewed, And The Smallest Clearance Gaps And Wobbles Have Been Eliminated To The Highest Tolerances.
S-Arb: S Arb Bearings Are Put Through The Same Process As Shimano'S A-Rb Bearings But Feature Shields On Both Sides Of The Bearings. These Shields Reduce The Possibility Of Salt Or Sand Inhibiting Rotation Of The Bearing. , Water Resistant Drag: With The Use Of Rubber Gaskets The Drag Is Sealed Against Intrusion Of The Elements Such As Water And Dust.
X Drag/ (X-Tough Drag): It's All About Leverage. Shimano Repositioned The Reel Handle Closer To The Body To Increase Cranking Leverage, Rigidity And Torque. There's Less Side-To-Side Tilt When You're Either Fighting A Big Bass, Working A Big Crankbait Down Deep, Or Throwing Extra Large Baits To Bass, Muskie, Striped Bass, Red Fish, And Calicos.
X Rigid Handle: The Hagane Body Is A Metal Reel Body With High Rigidity. The Body Rigidity And Impact Resistance Virtually Eliminates Body Flexing. The Result Transforms The Angler's Actions Directly Into Cranking Power. It's Efficiency Through Strength.
X-Rigid Gear: The X-Rigid Gear Was Born To Win The Challenge Against Tough Saltwater Species And Lies At The Heart Of Stella Sw. The Thickness And Rigidity Of The Reborn Main Gear Are Obvious To The Naked Eye With A 20% Increase In Thickness. In Addition, A Special Surface Treatment Is Applied To Achieve Durability Of Up To 138% Compared To Conventional Products.
X-Ship: X-Ship Provides Improved Gear Durability. By Supporting The Pinion Gear On Both Ends With Bearings, The Pinion Gear Maintains Precise Alignment With The Drive Gear. This Means The Gears Will Stay In The Same Position Under The Heaviest Loads. The Added Benefit Is That Friction Between The Spool Shaft And Gear Are Eliminated. This Will Enhance The Casting Performance Of The Reel With Lighter Lures, And Allow For Longer Casts.
X-Shield: By Providing Dependable Sealing Structures And Gaskets At 12 Critical Locations Throughout The Reel Body, We Are Able To Create A Water Resistant Structure That Is Highly Reliable And Durable. Ensuring That It Can Hold Up When Used In Extreme Saltwater Conditions.
X Rigid Rotor: The Shape And Thickness Of The Aluminum Rotor Creates High Rigidity That Results In More Fish Fighting Power. Increased Mass Of The Aluminum Rotor Generates More Inertia Resulting In Easier Fishing Of Heavy Jigs And High Resistance Lures.
X Rigid Bail: The Use Of A Large Diameter Titanium Alloy Wire Loop Increases The Overall Hardness. In Addition To Excellent Toughness And Impact Resistance, Titanium Alloy Materials Bring Unparalleled Lightweight And Corrosion Resistance.
X-Protect: By Combining Our Water Repellent Coating And Our Specially Designed, Water Channeling, Labyrinth Construction, X-Protect Provides High-Level Water Resistance Without Sacrificing Light Gear And Rotor Rotation.
